量程Capacity |

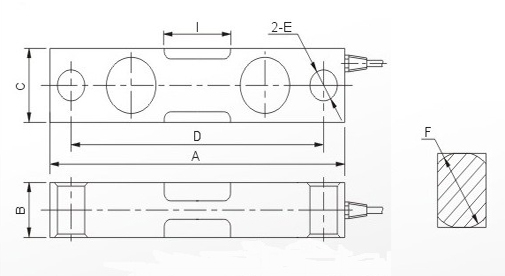

尺寸Size (mm) |
|||
|
t |
Klb |
A |
B |
C |
|
1~2 |
2.5~5 |
190.0 |
31.5 |
31.2 |
|
5~10 |
10~25 |
222.5 |
36.4 |
49.5 |
|
15 |
35 |
222.5 |
38.2 |
63.2 |
|
20 |
50 |
343.5 |
62.2 |
75.2 |
|
主 要 技 術(shù) 指 標Main Description |
|||
|
測量范圍Capacity |
1、2、5、10、15、20 2.5、5、10、15、25、35、50 |
kg |
|
|
?輸出靈敏度Rated Output |
3.0±0.010 |
mV/V |
|
|
?非線性Linear |
±0.02 |
%F.S |
|
|
?滯后Hysteresis |
±0.02
|
%F.S |
|
|
?重復性Reapeatability |
±0.01
|
%F.S |
|
|
?蠕變Creep
|
±0.02
|
%F.S |
|
|
?零點輸出Zero Balance |
≤±1.0
|
%F.S |
|
|
?溫度補償范圍?Conpensated Temperature Range |
室溫～+60 |
℃ |
|
|
?零點溫度補償系數(shù)Temperature Effect On Zero |
±0.02 |
%F.S/10?℃ |
|
|
?額定輸出溫度系數(shù)?Temperature Effect On Output
|
±0.02 |
%F.S/10?℃ |
|
|
?供橋電壓?Excitation Voltage |
10V |
AC/DC |
|
|
?絕緣電阻Insulation Resistence |
≥5000 |
MΩ/100VDC |
|
|
?輸入電阻?Input Resistence |
770±8 |
Ω |
|
|
?輸出電阻Output Resistence |
700±2 |
Ω |
|
|
?允許過載系數(shù)Safe Overload |
120 |
%F.S |
|
|
電纜連接方式Cable Connection
|
信號輸出Singal Output：?黃:Yellow (+) 黑:Black (－) |
||
|
供橋電壓Excitation Voltage：?紅Red: (+)?綠Green：?（－） |
|||
